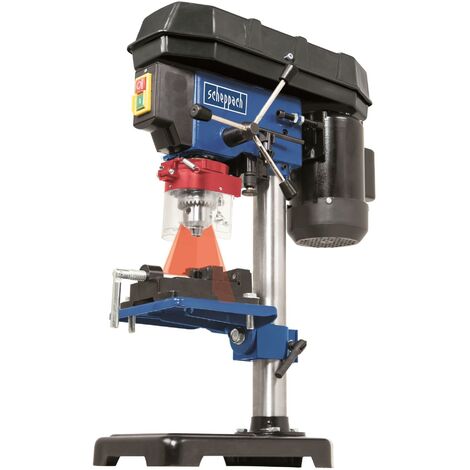

230V DRILL PRESS PILLAR BENCH DRILL DRILLING WITH CROSS LASER 500W SCHEPPACH DP16VLS
SCHEPPACH’S DRILL PRESS WITH LASER CENTERING DEVICE IS A POWERHOUSE FOR YOUR SHOP.

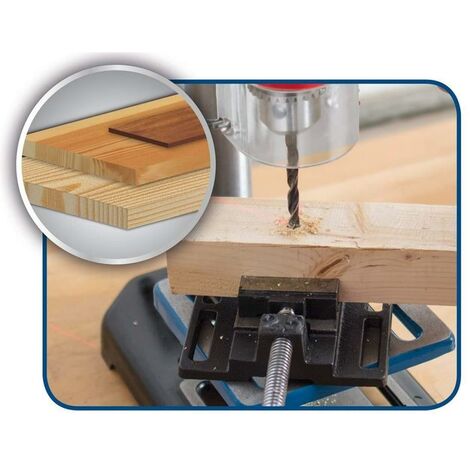

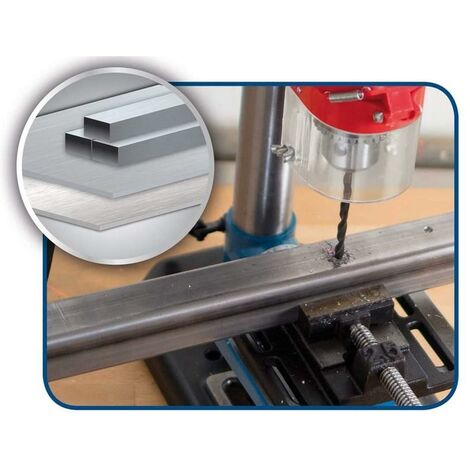

PACKED WITH FEATURES THAT YOU’LL FIND IN LARGER, MORE INDUSTRIAL TYPE DRILL PRESSES, YOU CAN POWER THROUGH METAL, WOOD AND OTHER MATERIALS
WITH EASE.
• 5 speed selections for various drilling applications
• Chuck capacity max. 13 mm
• Sturdy steel construction
• Excellent value for money bench mounted workshop tool
• Powerful 500 W motor for long-lasting performance
• Exact laser alignment system for precision works
SPECIFICATIONS
Dimensions L x W x H: 460 x 255 x 630 mm
Table size: 160 x 168 mm
Table tilt 45° – 0 – 45°
Speed range 5 speeds
Chuck cap 3 – 13 mm
Max. chuck to table 220 mm
Max. chuck to base 300 mm
Motor 230 V~
Input 500 W
LOGISTICAL DATA
Weight net / gross: 17 / 18.2 kg
Packaging dimensions: 490 x 365 x 250 mm
