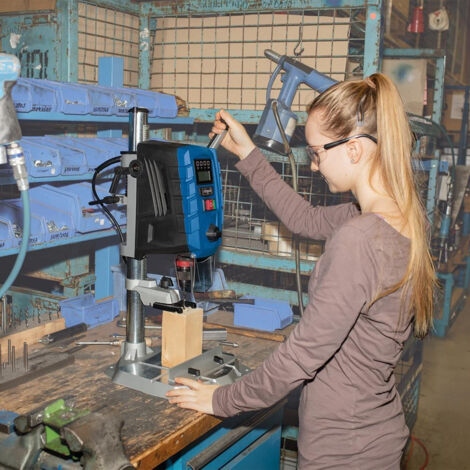

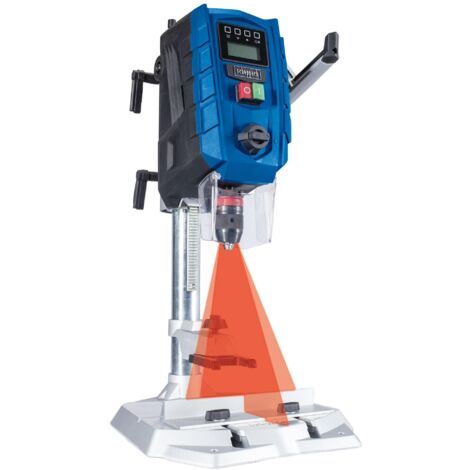

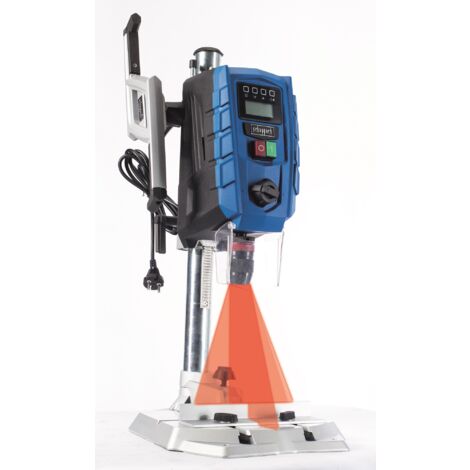

230 V BENCH DRILL PILLAR PRESS WITH CROSS LASER 710 W SCHEPPACH DP60

230 V BENCH DRILL PILLAR PRESS WITH CROSS LASER 710 W SCHEPPACH DP60

The Scheppach drill press DP60 combines state-of-the-art technology with modern design.
Machine features an intuitive built-in display and a powerful 710W 2-gear motor allowing you to easily operate and achieve great boring results in no time.
Do not miss out on this valuable tool for your workshop.

• Easy reading of the exact drilling depth
• 2-speed gearbox for the right setting: 1st gear: high power - 2nd gear: high speed
• Keyless precision chuck for fast clamping
• Integrated laser for easy, precise drilling
• Integrated LED for proper illumination of the working area
• Quick-action clamp for fast fixing, even of round workpieces
• Handle mountable on both sides

Technical data:

Dimensions L x W x H 350 x 300 x 650 mm
Base L x B x H 350 x 300 x 30 mm
Speed range 170 – 880 / 490 – 2600 min-1
Chuck cap 1.5 – 13 mm
Drill stroke 100 mm
Drill-Ø in wood 40 mm
Drill-Ø in steel 13 mm
Drive 2 gears
Chuck to base max. 280 mm
Motor 220 – 240 V~ / 50 – 60 Hz
Input 710 W
Weight net / gross 8.2 / 9.8 kg
Packaging dimensions 685 x 345 x 230 mm
