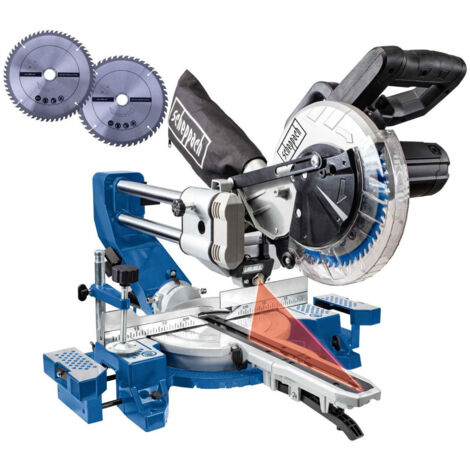

230V COMPOUND MITRE SAW WOOD 2200W Ø 216mm SCHEPPACH HM90SL

COMPOUND MITRE SAW SCHEPPACH HM90SL


The scheppach hm90sl sliding mitre saw is the ideal tool when you have less space but don't want to miss a highclass and multifunctional sliding mitre saw.

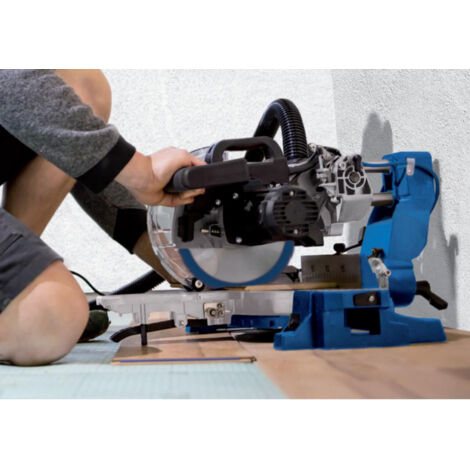

The novel guidance on fixed guiding rails allows positioning directly before walls because the machine doesn't need any space behind it for effective working.


- Big cross cut capacity up to 300 x 65 mm
- Space-saving through fixed guiding rails

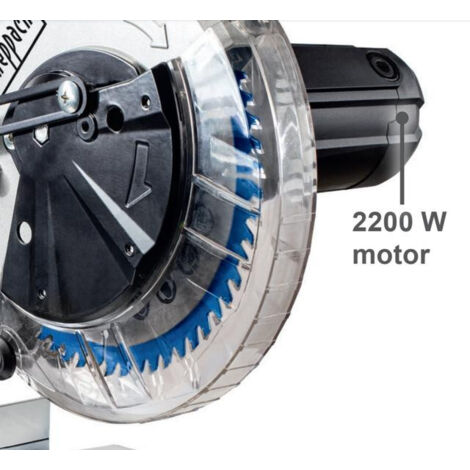

- Powerful 2200 W motor
- Build in Laser for precise display of the cut edge
- Mitres from -47° — +47° for efficient working
- Build-in LED for lighting of the work area
- Extra-long, blue power cable


Technical data:

Dimensions L x W x h: 680 x 520 x 350 mm
Blade Ø: 216 mm
Blade speed: 5200 min-1
Bevel type: 1 x 45°
Mitre capacity: 45° left / -45° right
Cutting width / height 90 ° / 90 °: 300 x 65 mm
Cutting width / height 90 ° / 45 °: 200 x 65 mm
Cutting width / height 45 ° / 90 °: 300 x 38 mm
Cutting width / height 45 ° / 45 °: 200 x 38 mm
Screen position in the turntable: at 0-15-22.5-31.6-45 °
Motor: 220 - 240V ~
Motor power: 2200 W
Weight net / gross: 10.5 / 12 kg
